Features:

KT-D12 power sensor has 12 signal outputs, which have the characteristics of fast response speed, good accuracy, strong waterproof and high reliability. Easy and quick to install and disassemble. The sensor is available in two models, left-hand and right-sided, and can be installed in different positions to suit various models.

Model specifications: Left-hand KT-D12L Right-hand KT-D12R

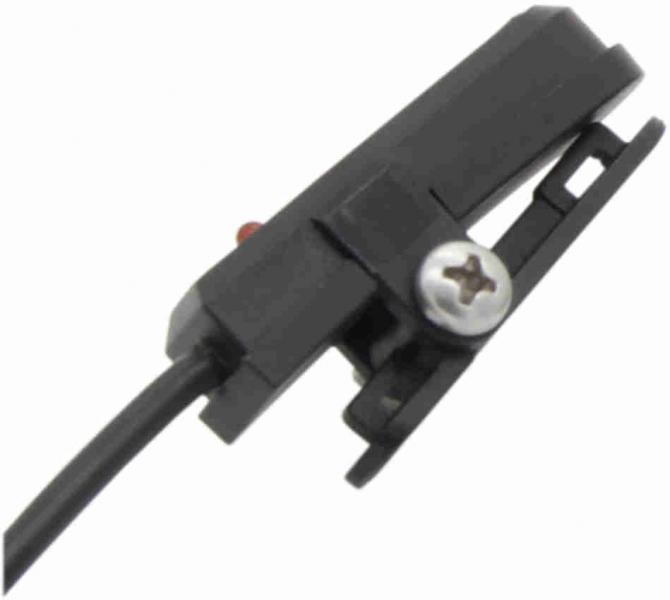

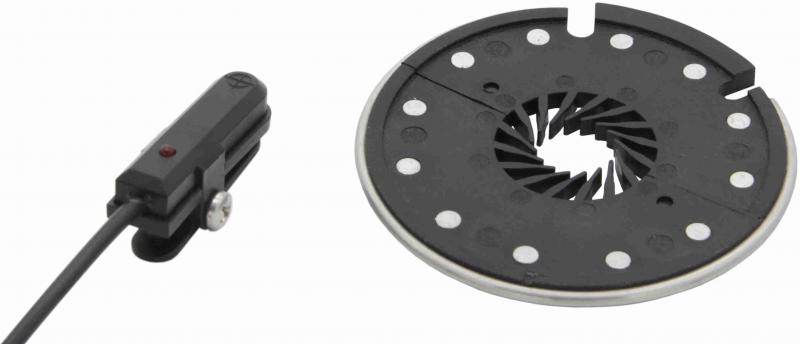

Sensor form

Sensor side view:

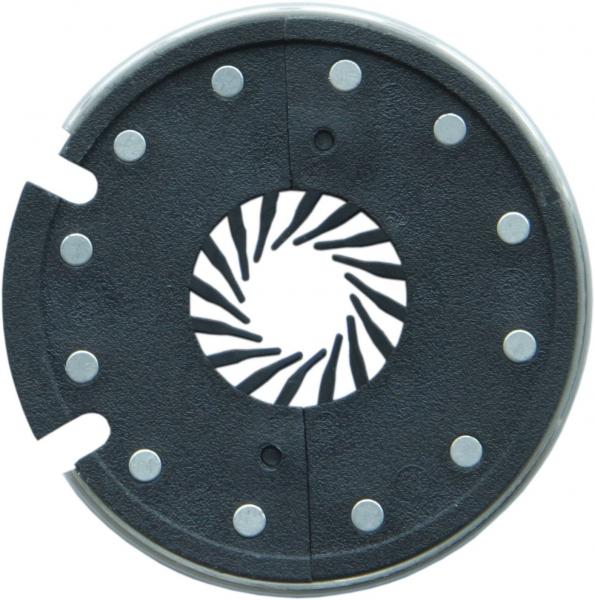

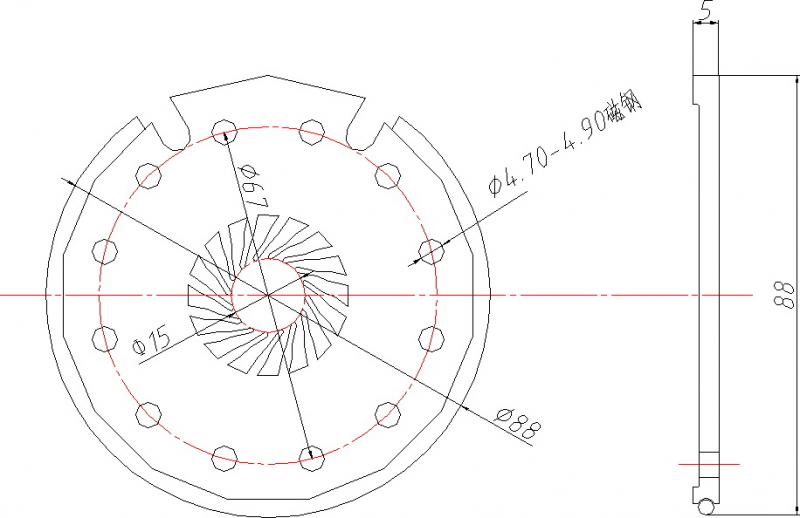

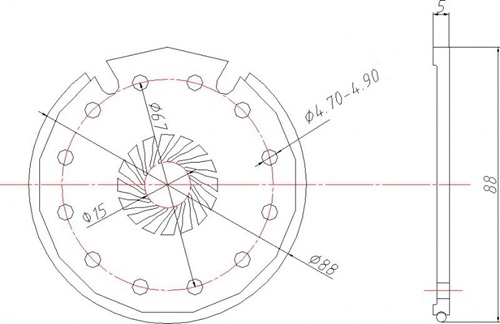

Magnet Disc Size:

Lead method: three-wire system

Standard interface: SM-3Y

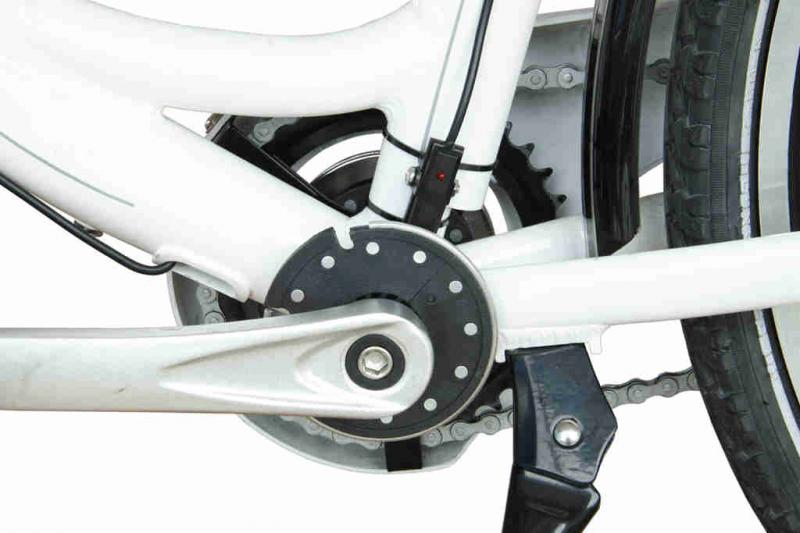

Left-hand position installation diagram:

Install the KT-D12L power sensor, and the sensor can be directly installed on the central axle of the electric bicycle without removing the crank.

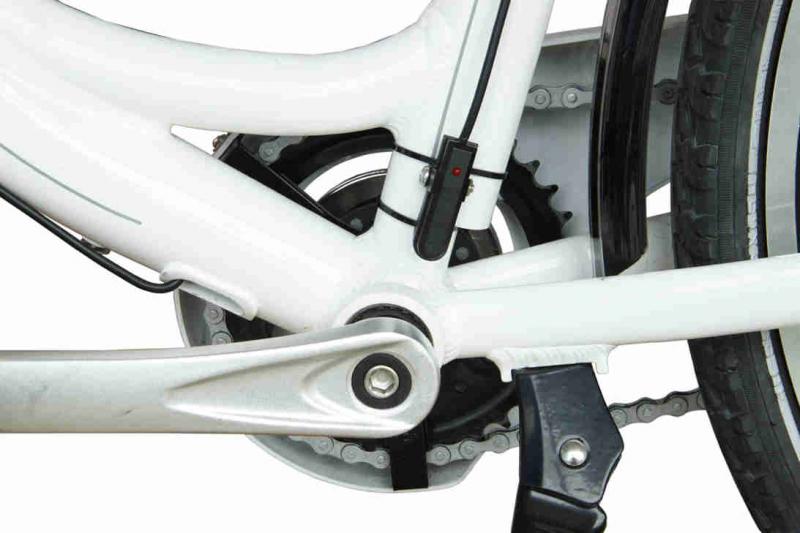

Secure the sensor with cable ties:

Installing the magnetic steel disc:

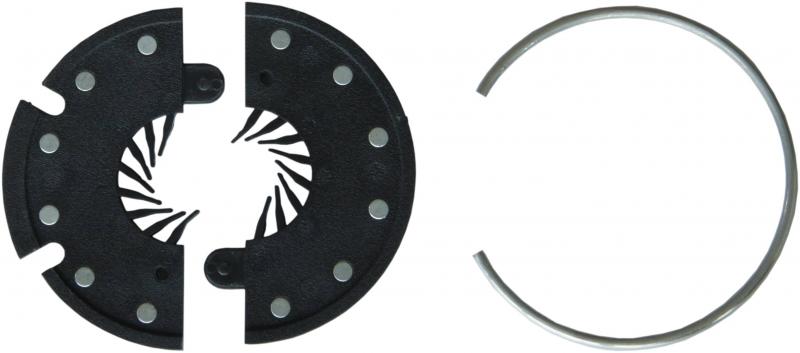

The assembly of the magnetic steel disc, according to the figure below, insert the two petals of the magnetic steel disc against each other, fix it with circlips, and the assembled magnetic steel disc is shown in the figure.
