Functions and features:

1. It adopts dual Hall detection elements and built-in disk integrated structure design, which has a unique novelty and beautiful appearance;

2. Compared with traditional separate sensors, the coaxial movement of the disk and the magnetic induction element is realized, the sensing sensitivity is high, and the signal is stable.

3. 12 signal outputs, help fast response speed, can automatically identify forward and reverse rotation when pedaling;

4. Easy and quick installation and removal. The sensor is available in two models: left-mounted and right-mounted, left-handed KT-V12L and right-handed KT-V12R.

Model specifications: Left-hand KT-V12L Right-hand KT-V12R

Sensor Form:

Front view Side view

Case color and material: black PC material

Lead method: three-wire system

Standard interface: SM-3A

Left-hand mounting position diagram:

KT-V12L dual-hall power sensor adopts the left side installation method, when installing, only need to remove the left crank, install the sensor on the central axle of the electric bicycle according to the direction shown in the figure, and then install the crank back in place to complete the installation of the sensor.

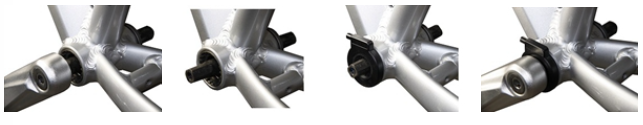

Left position Remove the crank Mount the sensor Install the crank
