Product Model:
KT Controller Series - Dual Motor Drive Brushless Controller (09S2)
Product Size:
167 (L) * 52 (W) * 31 (H), 09S2 Aluminum Housing.
Technical parameters:
matching battery voltage 24-48V, upper limit working current 17*2A, upper limit power 816*2W.
Product features:
The imitation torque control mode is adopted to achieve smooth vehicle starting and smooth and natural driving.
The electric assist has a fast response speed and is always consistent with the cyclist's pedaling action to achieve the effect of torque assist.
It has multiple protection functions such as stall turning, overcurrent, over-temperature, undervoltage, flying, phase loss, and output short circuit to protect the vehicle's electronic control system and driving safety.
Driven by Hall motor or without Hall, it is suitable for all kinds of high and low speed motors.
There are two control modes to choose from: square wave and sine wave.
Various controllers can be customized for users.

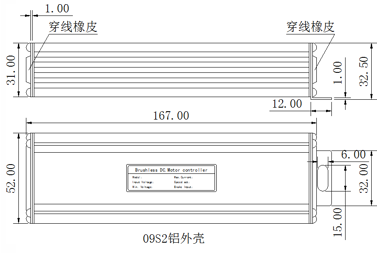

Dimensions:
