Product Model:

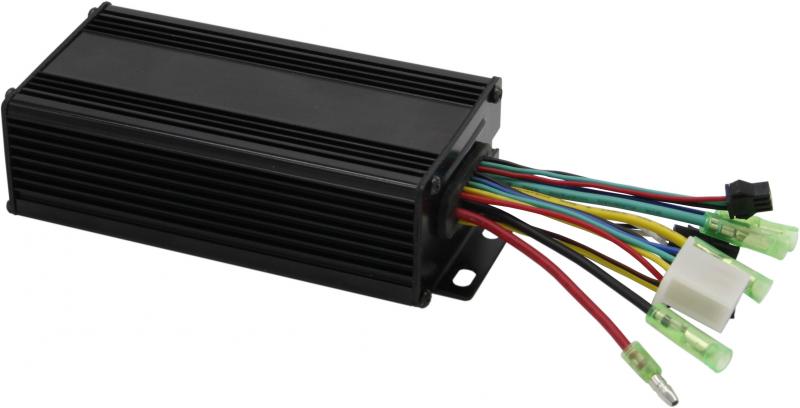

KT Controller Series - 9-tube brushless controller (06B121).

Product Dimensions:

131 (L) * 66 (W) * 38.5 (H), 06B121 black aluminum housing.

Technical parameters:

Matching battery voltage 24-72V, upper limit working current 25A, upper limit power 1800W.

Product Features:

The imitation torque control mode is used to realize the smooth start of the vehicle and help the driving to be smooth and natural.

The electric assist has a fast response speed and is always consistent with the cyclist's pedaling action to achieve the effect of torque assist.

It has multiple protection functions such as stall turning, overcurrent, over-temperature, undervoltage, flying, phase loss, and output short circuit to protect the vehicle's electronic control system and driving safety.

Driven by Hall motor or without Hall, it is suitable for all kinds of high and low speed motors.

Square/sine wave control mode.

Various controllers can be customized for users.

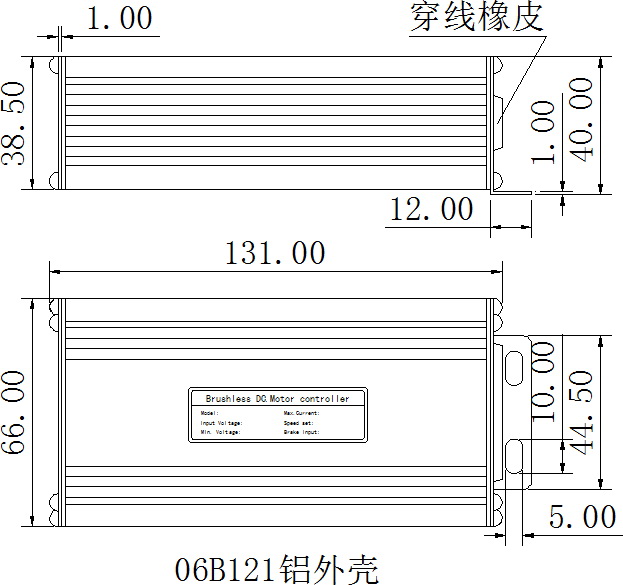

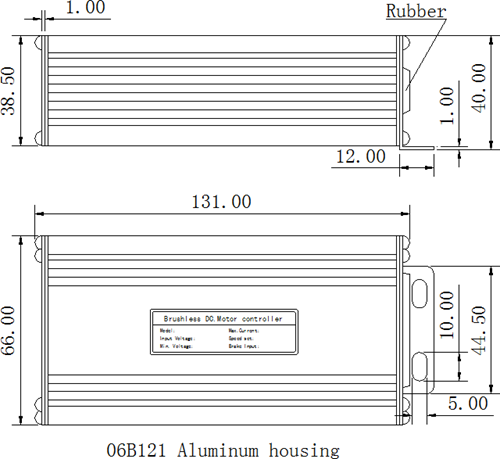

Dimensions:
