Home > Products -> LCD Display Meter

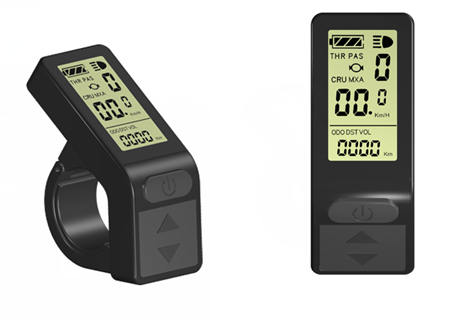

  • LCD4
  • Count:101040 Time:2019-10-09 10:45:49


    • Features£º


      1. Data display£ºit shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling parameters;

      2. Intelligent power£ºa true reflection of the battery charge, real-time recording of the power consumption to ensure riding mileage;

      3. Stalls setting£ºmulti-gear switch and automatic save of the power-assist gear, and it can restore power-off stall state when turned on;

      4. Parameter setting£ºwith a number of user parameter setting functions, motor parameters, velocity measurement parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimum controller voltage and maximum current parameters and other operating models for settings adjustment ;

      5. Data view£ºUsers can view historical driving data and clear accordingly, view single or cumulative riding time, riding mileage, maximum speed and average speed of single riding;

      6. Vehicle boosting£ºWith 6Km/h power-assisting functions, the boost logo flashes during boosting, and riders can use it when driving the vehicle and the vehicle driving is labor-saving and easy;

      7. Cadence function£ºIn the assistance mode, the display will show the pedal¡¯s Revolutions Per Minute (RPM);

      8. Cruise and constant speed£ºWith the setting and display of the cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed;

      9. Night driving£ºWith the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night;

      10. Password setting£ºWith three-bit of power-on password setting;

      11. Automatically prompt£ºFor the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle. With a temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection;

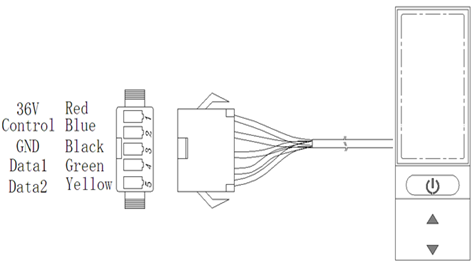

      12. Use five-line of digital communication, the instrument has good compatibility and interchangeability, different instruments can be conducted the data exchanges and parameters copy directly;

      13. Host part and operation buttons of the meter use sub-structure design, making the operation to be more reasonable and convenient;

      14. Supply voltage of 24V, 36V, 48V can be automatically identified and compatible;

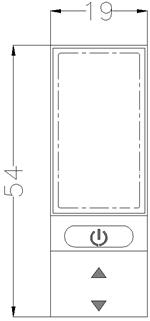

      15. Dimensions£º
